H100

Precision engineering you can trust.
Design you will love.

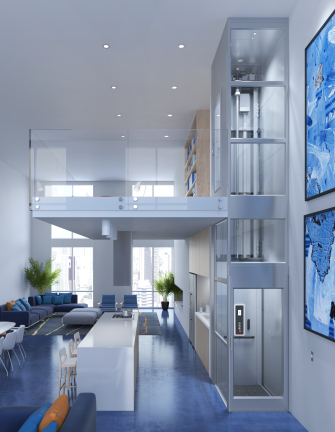

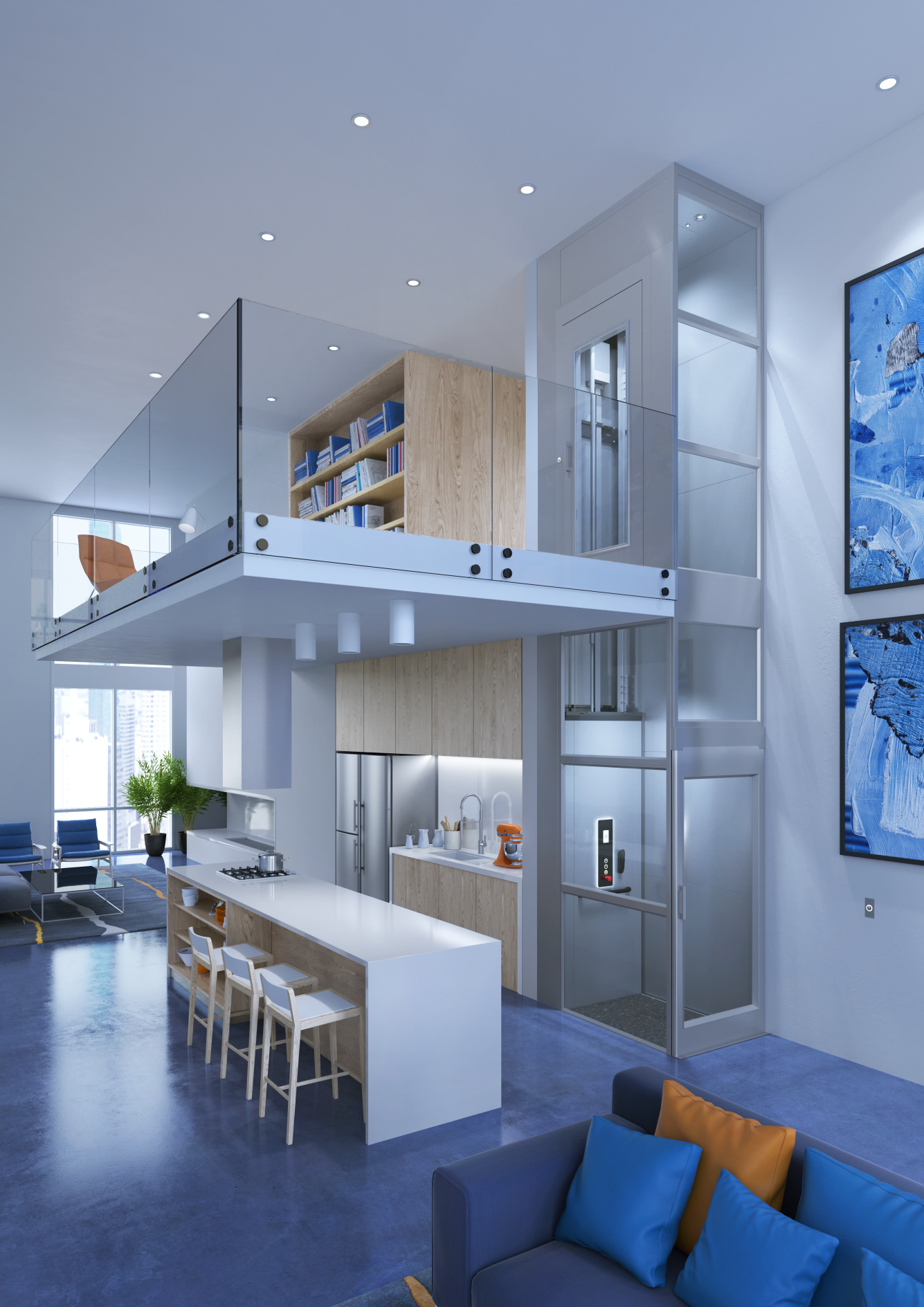

Fulfill your passion for Italian design through the H100 home lift, an unobtrusive and sleek addition in your home.

Our approach to offering an ideal solution for your home has led us to engineer a home lift which takes full advantage of your limited space, as well as offering configurations for wheelchair accessibility if required.

H100 takes advantage of a widely-used lifting technology. Combine this with our thorough approach to engineering, and our love of Italian design, you are sure to have found the perfect addition to your home.

Safety and comfort are the pillars of our design and they are delivered from our German heritage, the components used and our precise attention to detail.

Maximum Space. Minimal Footprint.

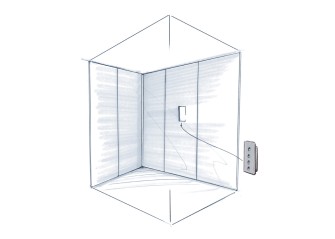

Utilising your available space efficiently is important. H100 home lift is optimised to require a pit of only 50mm, and a headroom of as little as 2430mm. This allows installations in tight spaces without hindering cabin space and door sizes.

Furthermore, we have engineered H100 to not require a machine room, allowing extra space to be utilised.

Safety is in our DNA.

H100 home lift boasts an extensive list of safety features; as standard the electronics carry a SIL3 certified safety system making it the highest safety standard on the platform lift market. TK Elevator Home Lifts also have a separated safety system, which means it will not be affected by mechanical faults to the drive system. Your safety is our priority.

In case of a power failure, H100 will continue to work from a battery, allowing the user to reach the ground floor safely. It is also possible to connect fire alarm systems to the main electronic board on the home lift.

Comfort.

We believe travelling between floors in your home shouldn’t be a difficult or uncomfortable experience. As standard, all of thyssenkrupp’s home lifts come fitted with soft-start/stop technology.

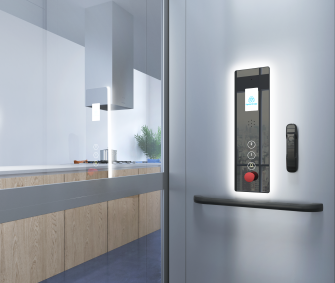

Each lift is fitted with a handrail and push to run buttons making the journey as seemless and safe as possible.

H100 Home Lift specification.

Technical compliance	European Machine directive 2006/42/EC European standard EN 81-41
Drive system	Screw/nut system
Rated speed	Max. 0,15m/s
Rated load	250 - 400kg
Travel height	1400 - 12000mm
Number of stops	Max. 6 stops per lift
Number of doors	Max. 12 doors per lift
Pit	50mm (no pit is required when there is a threshold/ramp)
Shaft top height	Standard 2430mm (elongation is possible)
Platform control	“Hold to run”, the destination button must be kept pressed down during the whole ride
Emergency lowering	Battery operated emergency lowering
Control voltage	24V
